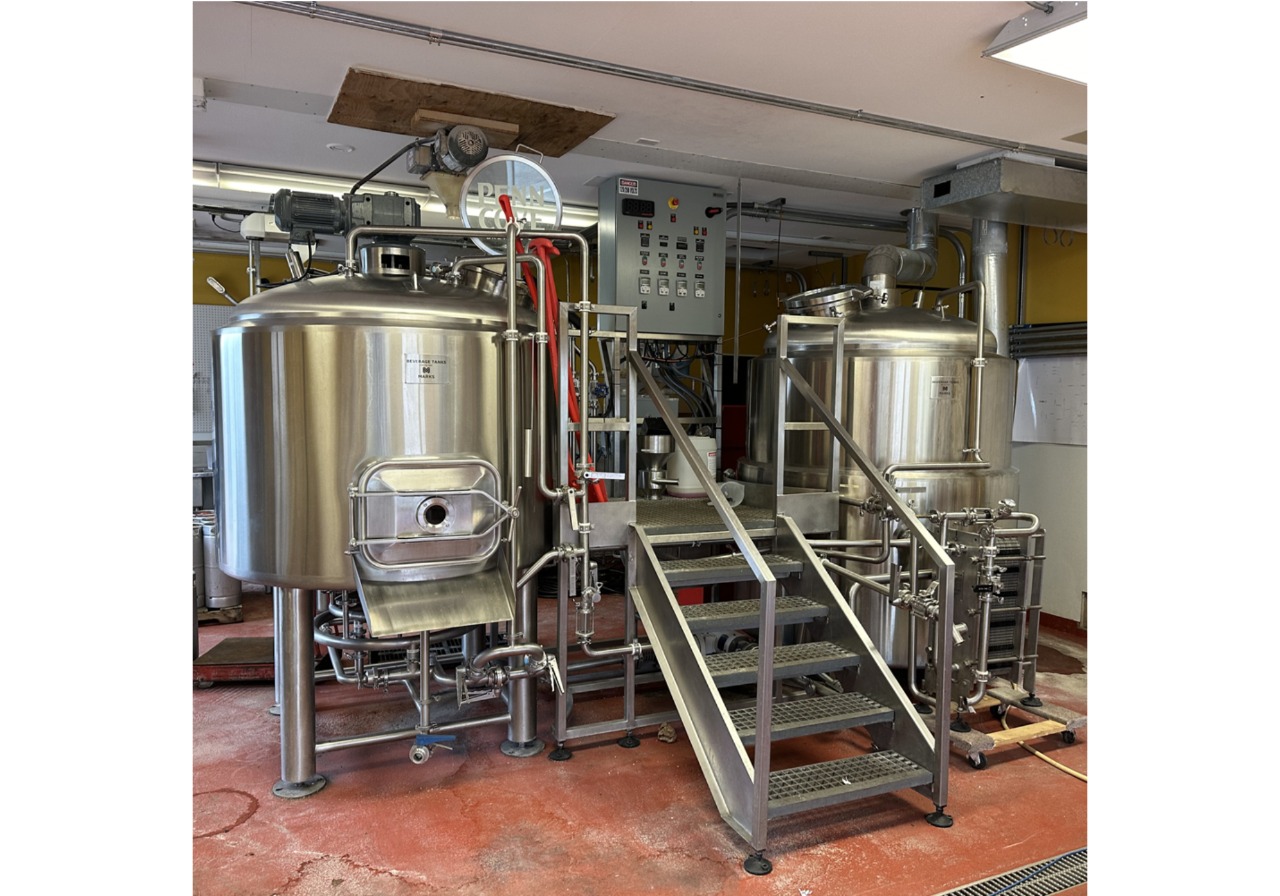

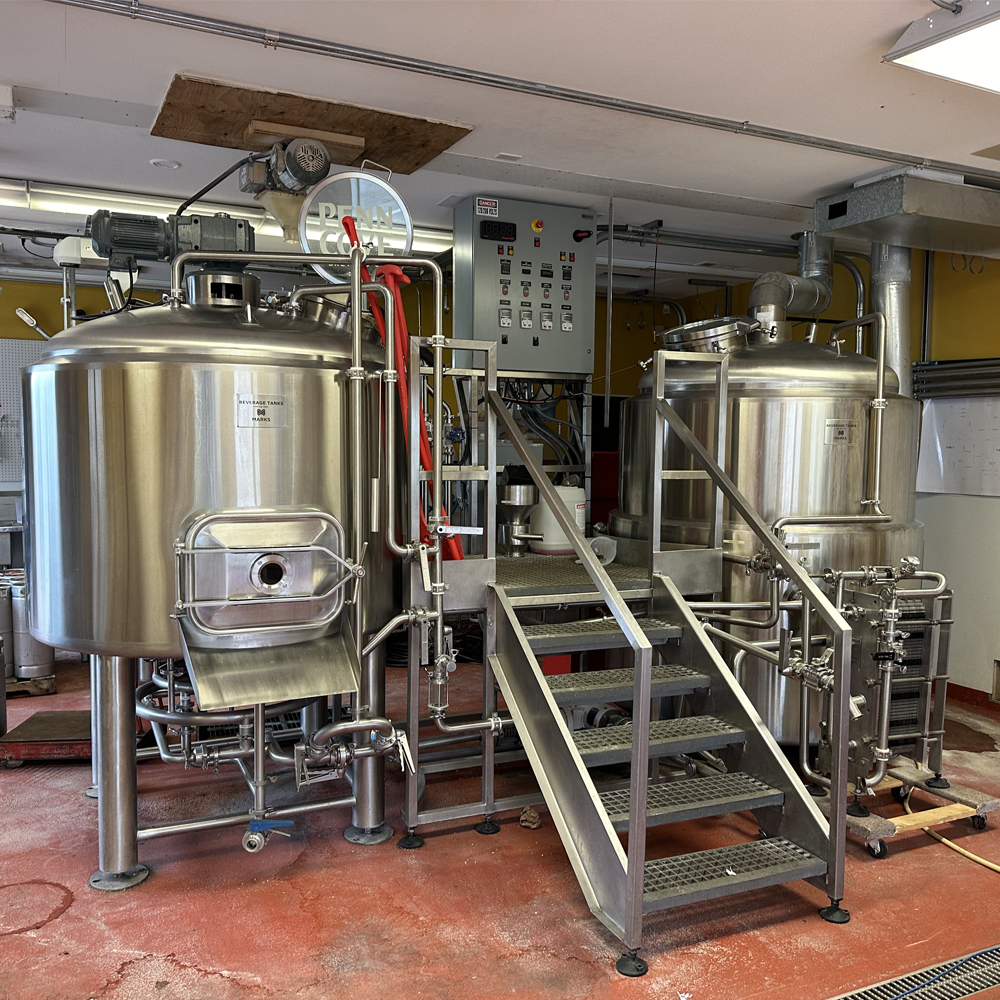

10BBL Marks Direct Fire Brewhouse with HLT - 1020
Marks DF 10BBL & HLT – 1020
Includes:
Manufactured by Marks
10 BBL Insulated Mash/Lauter Tun (MLT)
- All interior welds blended
- Top mounted glass manway with etched brewery logo
- 4” Grist hydrator
- Rake-style mixer with top mounted motor (Nord gearbox) and manual flip-down grain-out plow
- Front rectangular manway with removable grain-out chute
- V-wire, removable, false bottom screen
- Dual sided manometer
- Multi-point wort drain assembly
- Sparging system with stainless steel spray jets
- Removable vorlauf inlet tube
- Sparging system with stainless steel spray jets
- 360° Rotating CIP spray ball(s)

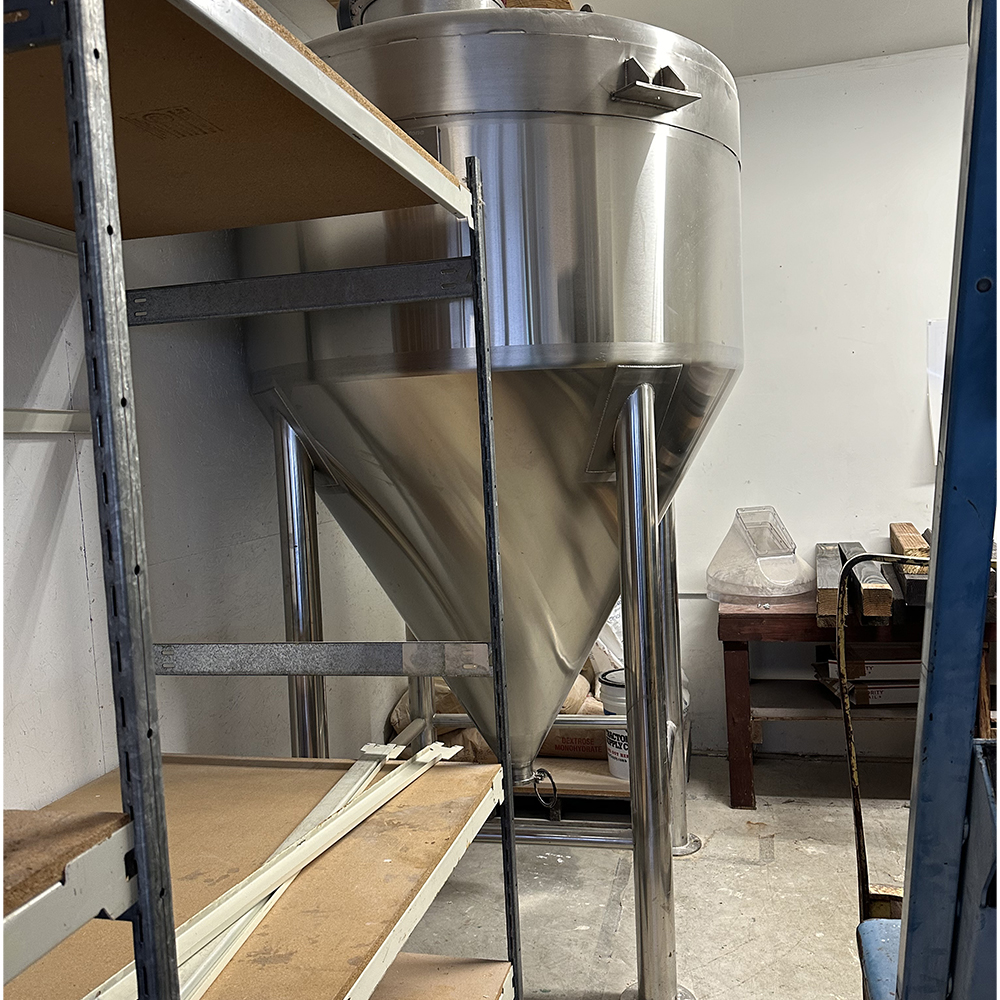

- 15 BBL Grist Case
10 BBL Direct Fire Kettle/Whirlpool (DFKWP)
- Heat is provided by an “on/off” natural gas burner with exhaust pipe
- Insulated “firebox” built around tank bottom and a portion of the side wall with baffling to optimize heat flow
- All interior welds blended
- Insulated shell with #4 polished stainless cladding
- Top mounted glass manway with etched brewery logo
- Sloped bottom design for maximum wort drainage
- 2″ drain sump with 4” trub drain
- Removable drain dam
- Tangential whirlpool inlet
- Temperature sensor well
- Steam vent with condensation ring/drain
- 360° Rotating CIP spray ball(s)

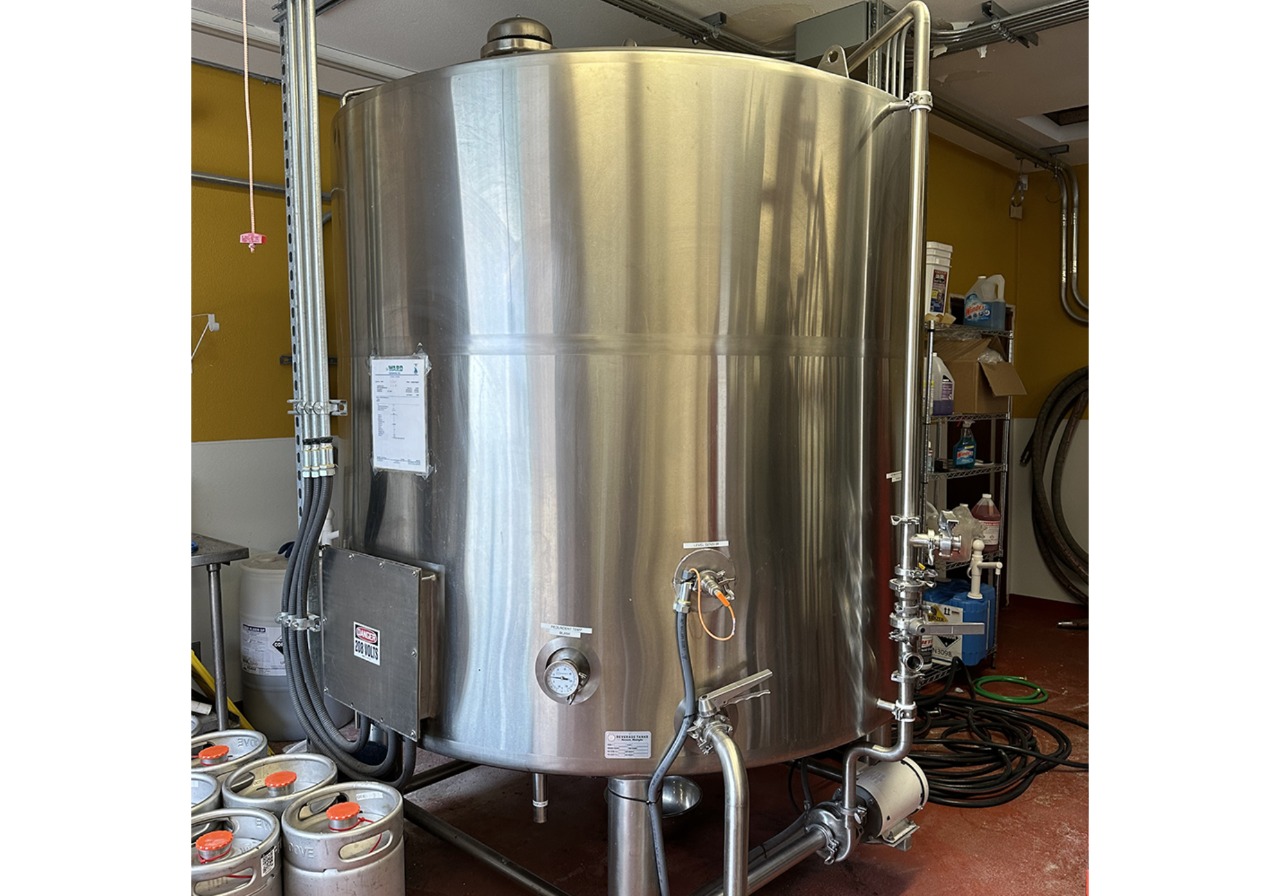

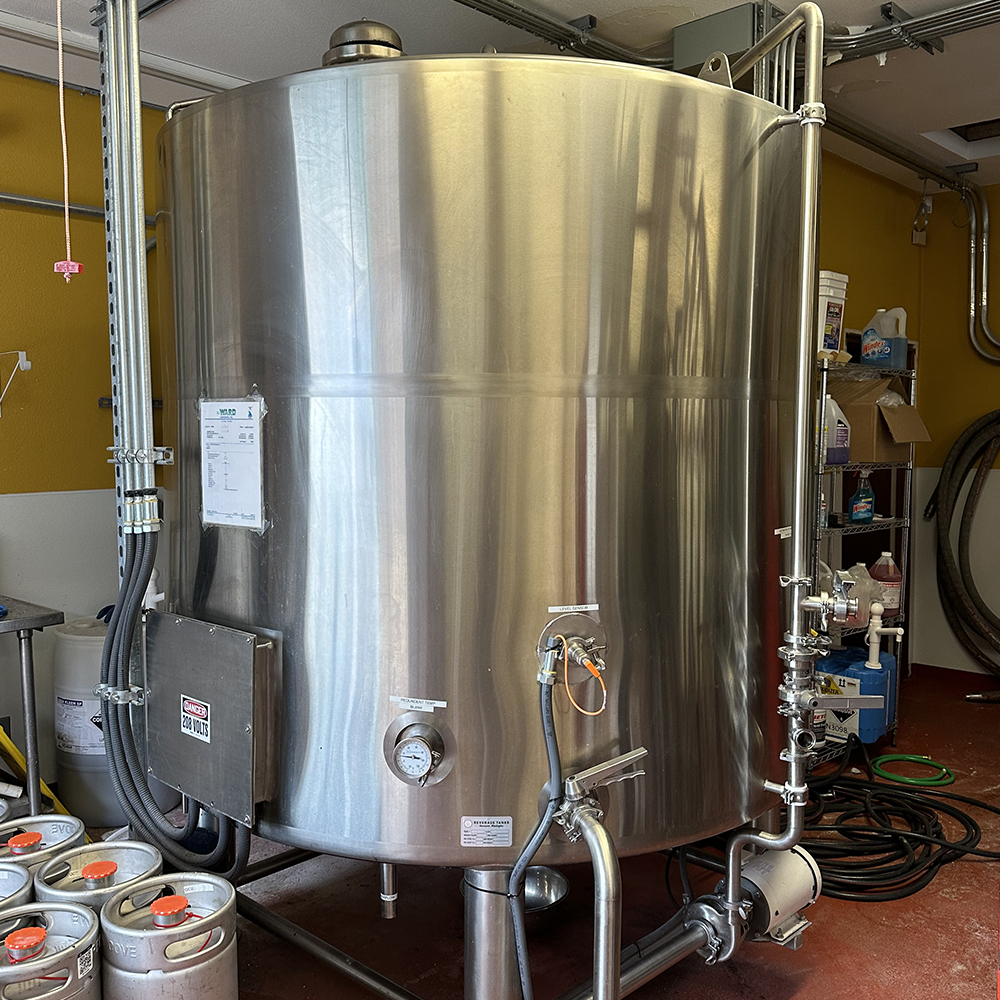

30 BBL Electric Heated Hot Liquor Tank (EHLT)
- Heat is provided by three 18kW immersion heaters
- All interior welds polished
- 316/316L SS on all wetted surfaces
- Insulated shell with #4 polished stainless cladding
- Top mounted manway
- Removable CIP assembly with 360° rotating CIP spray ball
- Drain extension tube
- Fittings for pump inlet, city water fill, heat exchanger return, tank recirculation
- Shell mounted thermowell
- Sight tube assembly with volume/calibration strips
Other Equipment
- Constructed of 304 Stainless Steel
- Stainless steel hand rail surrounding perimeter of work area with toe kick plate
- Brewhouse Platform (BPF)
- Fiberglass decking material with non-slip top
- Integrated stair or ladder assembly
- Adjustable foot pads for platform leveling
- UL Listed Push Button Certified Control System
- (1) Magflow meter at water mixing station (1) Boil over sensor (DFKWP)
- (2) Digital temperature controllers (DFKWP, HLT) (3) Variable speed controllers for pumps (MLT, DFKWP, EHLT)
- (1) Variable frequency drives to control speed and direction of mixer (MLT) (3) RTD temperature sensors (MLT, DFKWP, EHLT)
- Brewhouse Piping, Clamps, Valves, Fittings
- All required clamps and gaskets to connect MLT, DFWP, EHLT
- Hot and cold water mixing station
- (3) 2HP centrifugal wash down rated pumps (MLT, DFWP, EHLT)

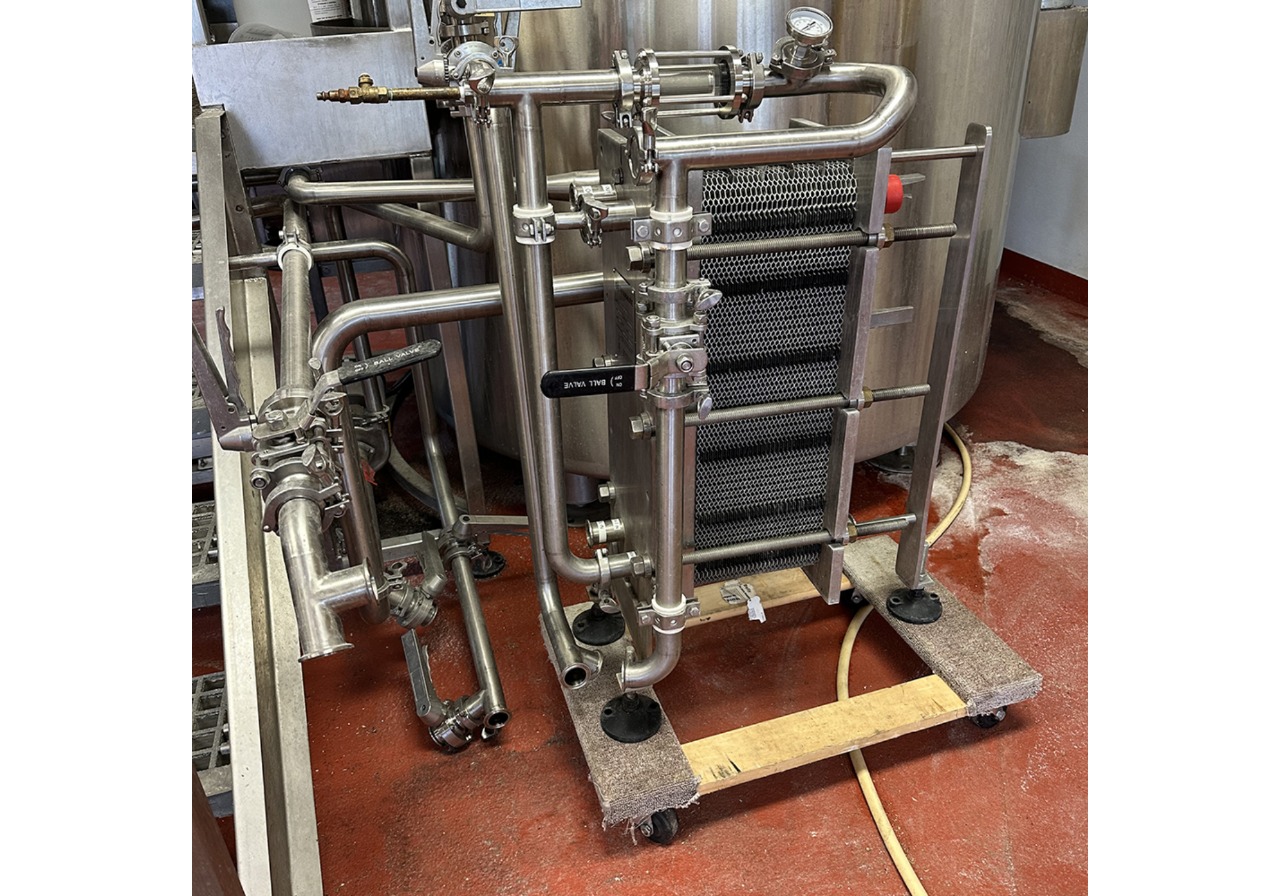

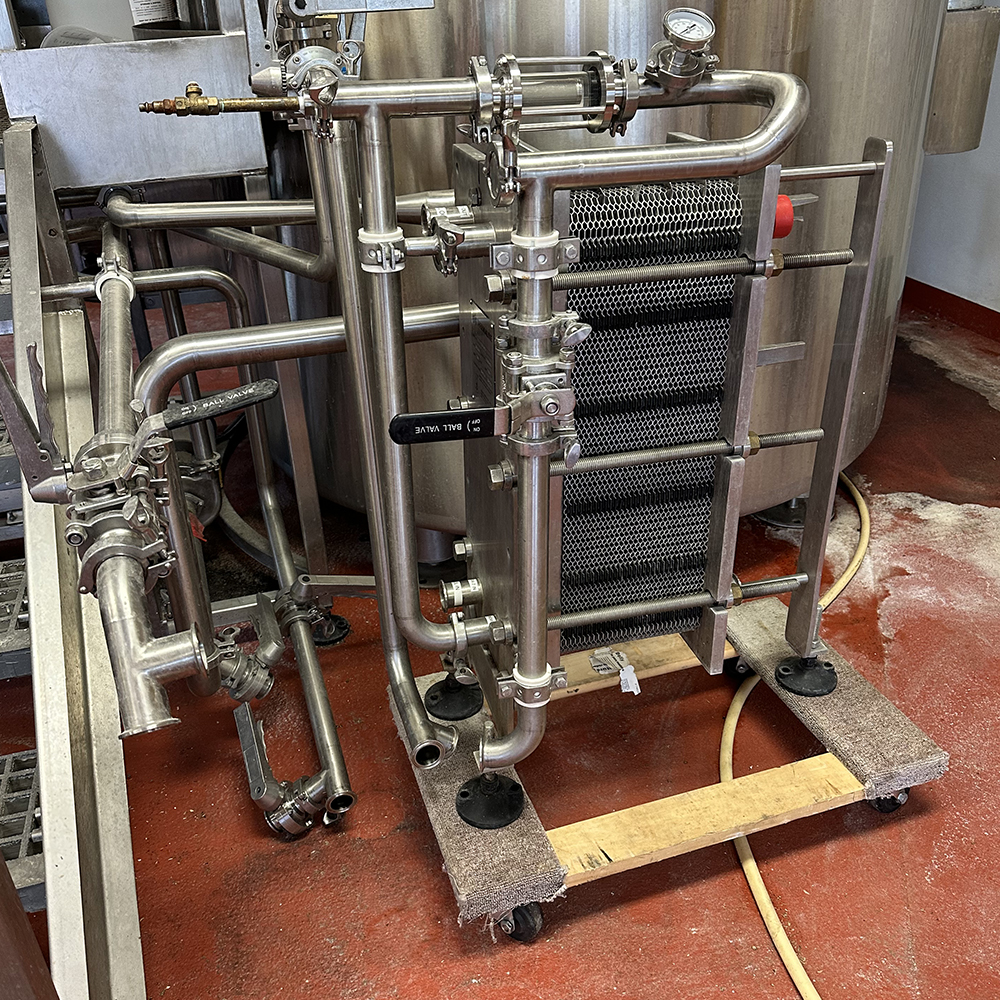

- Dual stage stainless steel plate heat exchanger sized for 30 min knockout
- Wort aeration assembly with sintered stone, sight glass, thermometer

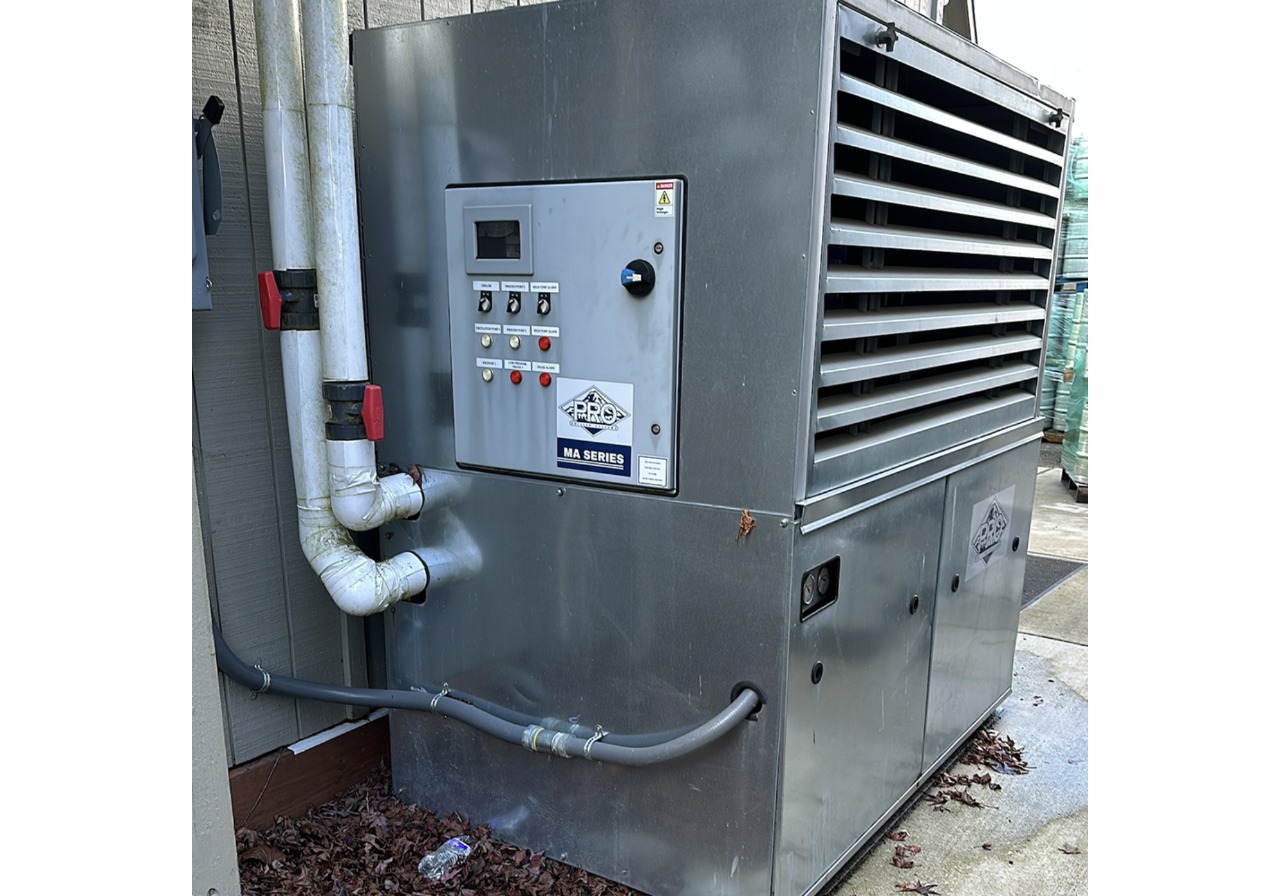

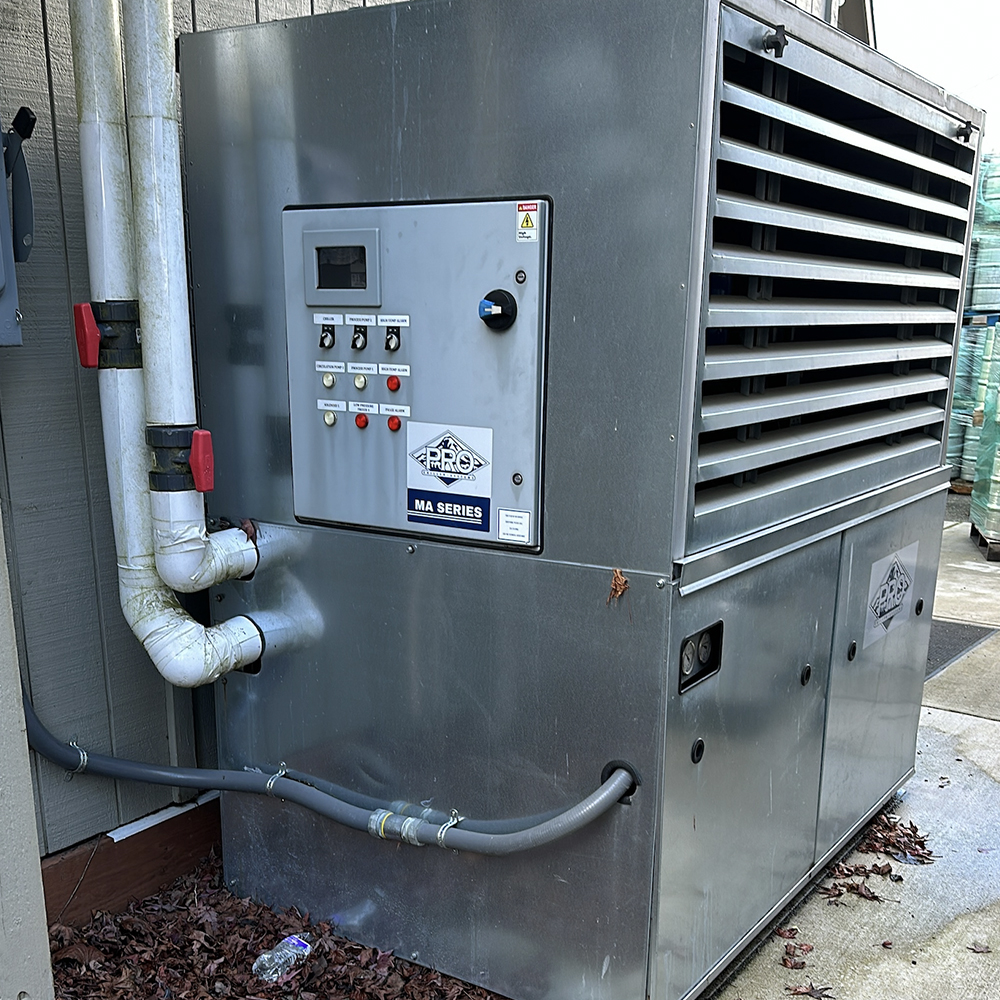

Pro Chiller Glycol Chiller
Model PM112F3R4100-A-VC 230/3/60 R404A 12 HP

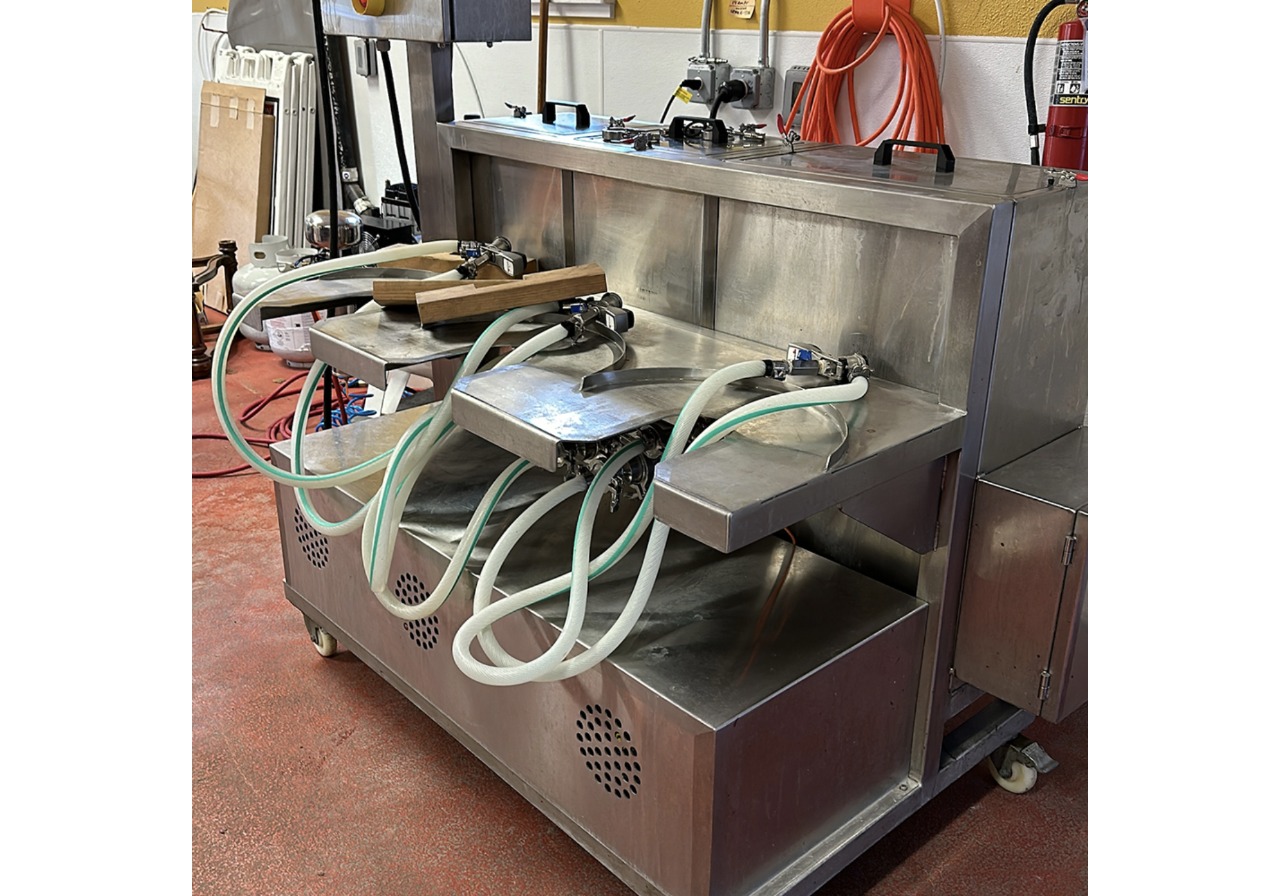

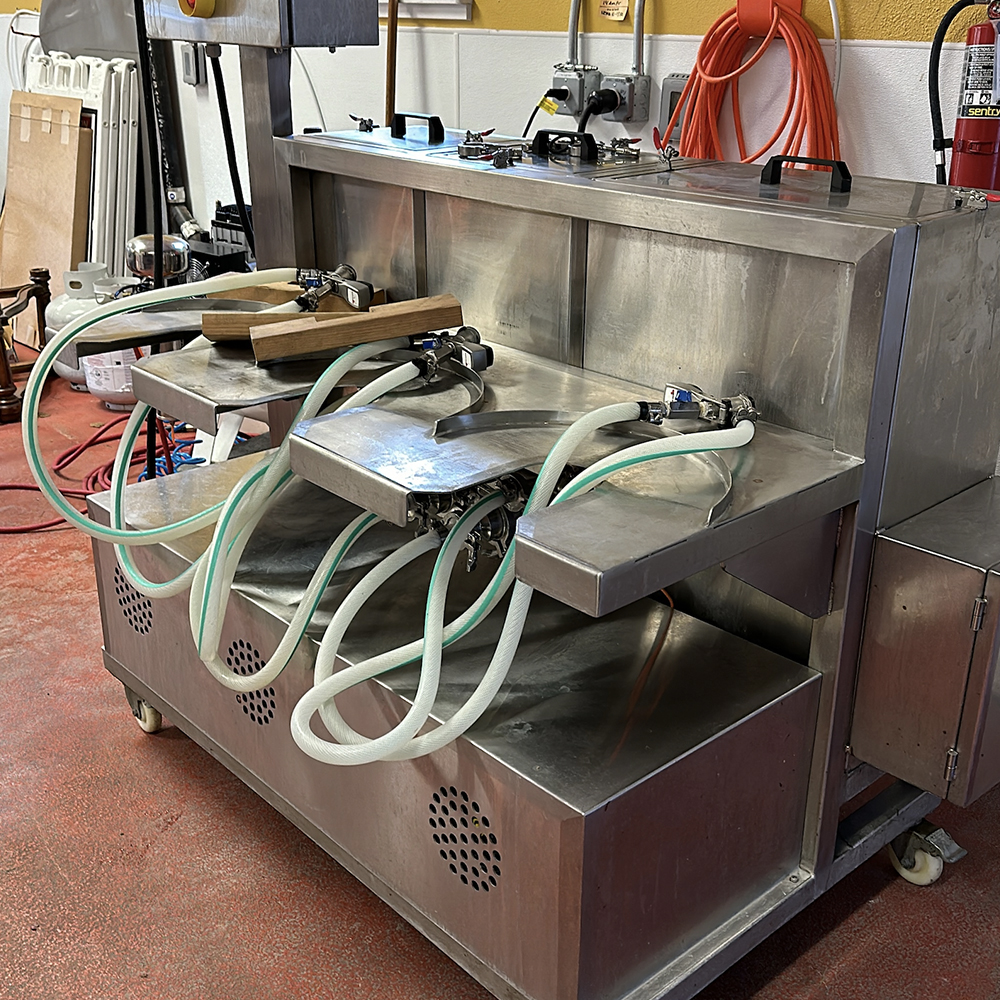

3-Head Keg Washer
Cedarstone 3-head keg washer and compressor.
Location: Coupville, Washington
Stock Number: 1020
Thank you for your interest in used equipment from Used-Brewing-Equipment.com. We are a business unit of Portland Kettle Works (portlandkettleworks.com and portlandkettleworks.mx) one of the world’s leading U.S. based manufacturers of high quality stainless steel equipment for craft brewers, wineries, kombucha brewers, cold brew coffee brewers and other beverages. From startup to relocation to expansion to shutdown, Portland Kettle Works is here to support your beverage brewing operations.
Click here for more information and one of our equipment specialists will contact you shortly to discuss your beverage equipment requirements.
All system and individual item descriptions are subject to change without notice.
All equipment is subject to prior sale.
Any equipment physically located away from The Portland Kettle Works headquarters in Portland, Oregon 97210 USA is subject to packing and drayage charges at the sole risk and expense of the buyer.
Page Title: 10BBL Marks Direct Fire Brewhouse with HLT – 1020
Used PKW 10 BBL Direct Fire Brewing System - 1018
Used PKW 10 BBL Direct Fire Brewing System – 1018
Manufactured by PKW
Includes:
- Direct Fire Heating
- 10 BBL Mash Tun
- 10 BBL Lauter Tun
- 30 BBL Hot Liquor Tank (HLT)
- Heat Exchanger
- PKW Control Panel
- Cat Walk
- Other Accessories
Manufactured by Practical Fusion
Includes:
- 2 x 10 BBL Jacketed and Insulated Fermenters
- 3 x 10 BBL Jacketed and Insulated Brite Tanks
Location: Portland, Oregon
Stock No: 1018
Thank you for your interest in used equipment from Used-Brewing-Equipment.com. We are a business unit of Portland Kettle Works (portlandkettleworks.com and portlandkettleworks.mx) one of the world’s leading U.S. based manufacturers of high quality stainless steel equipment for craft brewers, wineries, kombucha brewers, cold brew coffee brewers and other beverages. From startup to relocation to expansion to shutdown, Portland Kettle Works is here to support your beverage brewing operations.
Click here for more information and one of our equipment specialists will contact you shortly to discuss your beverage equipment requirements.
All system and individual item descriptions are subject to change without notice.
All equipment is subject to prior sale.
Any equipment physically located away from The Portland Kettle Works headquarters in Portland, Oregon 97210 USA is subject to packing and drayage charges at the sole risk and expense of the buyer.
Page Title: Used PKW 10 BBL Direct Fire Brewing System – 1018
Used IDD 5 HL (4.3 BBL) Turnkey Brewing System - 1014
Used IDD 5 HL (4.3 BBL) Turnkey Brewing System – 1014
Manufactured by IDD
Includes:
- 5 HL (4.3 BBL) Brewhouse (Mash/Lauter Tun)
- 5 HL (4.3 BBL) Brew Kettle
- Mash Filter
- 1 x 20 HL (17 BBL) HLT
- 1 x 20 HL (17 BBL) CLT
- 2 x 15 HL (12.8 BBL) Fermenters (Side Manway)
- 1 x 15 HL (12.8 BBL) Brite Tank (Side Manway)
- Temperature Controls
- Keg Washer, pumps, and more.
Location: Saratoga, Wyoming
System Number: 1014
Thank you for your interest in used equipment from Used-Brewing-Equipment.com. We are a business unit of Portland Kettle Works (portlandkettleworks.com and portlandkettleworks.mx) one of the world’s leading U.S. based manufacturers of high quality stainless steel equipment for craft brewers, wineries, kombucha brewers, cold brew coffee brewers and other beverages. From startup to relocation to expansion to shutdown, Portland Kettle Works is here to support your beverage brewing operations.
Click here for more information and one of our equipment specialists will contact you shortly to discuss your beverage equipment requirements.
All system and individual item descriptions are subject to change without notice.
All equipment is subject to prior sale.
Any equipment physically located away from The Portland Kettle Works headquarters in Portland, Oregon 97210 USA is subject to packing and drayage charges at the sole risk and expense of the buyer.
Page Title: Used IDD 5 HL (4.3 BBL) Turnkey Brewing System – 1014
NEW PKW 5 BBL Brewhouse With Cellar Tanks And Accessories - 1010
NEW PKW 5 BBL Brewhouse With Cellar Tanks And Accessories – 1010
A rare find! This is a brand new, complete PKW production brewhouse ready to be installed, commissioned and start brewing great craft beer.
Available for immediate shipment.
Manufactured by Portland Kettle Works
Includes:
- BRAND NEW – NEVER INSTALLED AND COMMISSIONED!!
- Steam Jacketed Heating
- 5 BBL Combo Mash/Lauter Tun
- 5 BBL Combo Brew Kettle/Whirlpool
- 15 BBL Hot Liquor Tank (HLT)
- Hopback Grant
- Heat Exchanger
Location: Portland, Oregon
Stock Number: 1010
Thank you for your interest in used equipment from Used-Brewing-Equipment.com. We are a business unit of Portland Kettle Works (portlandkettleworks.com and portlandkettleworks.mx) one of the world’s leading U.S. based manufacturers of high quality stainless steel equipment for craft brewers, wineries, kombucha brewers, cold brew coffee brewers and other beverages. From startup to relocation to expansion to shutdown, Portland Kettle Works is here to support your beverage brewing operations.
Click here for more information and one of our equipment specialists will contact you shortly to discuss your beverage equipment requirements.
All system and individual item descriptions are subject to change without notice.
All equipment is subject to prior sale.
Any equipment physically located away from The Portland Kettle Works headquarters in Portland, Oregon 97210 USA is subject to packing and drayage charges at the sole risk and expense of the buyer.
Page Title: NEW PKW 5 BBL Brewhouse With Cellar Tanks And Accessories – 1010
Certified Used Practical Fusion 7 BBL Brewing System - 1046
Certified Used Practical Fusion 7 BBL Brewing System
Manufactured by Practical Fusion
- Complete 7 BBL system with mash tun, brew kettle, brewing platform
- 17 BBL hot liquor tank, 1 hp pump, piping, 6w heating element
- 3 ea. 7 BBL Conical Vertical Fermenters, jacketed and insulated
- 1 ea. 7 BBL Bright Tank, jacketed and insulated
- Heat exchanger
- Diverter Panel
- 2 HP pump
- 1/2 BBL wort grant
- 2 Head manual keg washer
- ChilStar Series 3 HP Glycol Chiller
- Auxiliary Equipment (additional hoses, clamps, accessories, etc.)
Location: Cottage Grove, OR
Stock Number: 1046
Page Title: Certified Used Practical Fusion 7 BBL Brewing System – 1046
Thank you for your interest in used equipment from Used-Brewing-Equipment.com. We are a business unit of Portland Kettle Works (portlandkettleworks.com and portlandkettleworks.mx) one of the world’s leading U.S. based manufacturers of high quality stainless steel equipment for craft brewers, wineries, kombucha brewers, cold brew coffee brewers and other beverages. From startup to relocation to expansion to shutdown, Portland Kettle Works is here to support your beverage brewing operations.
Click here for more information and one of our equipment specialists will contact you shortly to discuss your beverage equipment requirements.
All system and individual item descriptions are subject to change without notice.
All equipment is subject to prior sale.
Any equipment physically located away from The Portland Kettle Works headquarters in Portland, Oregon 97210 USA is subject to packing and drayage charges at the sole risk and expense of the buyer.
Certified Used Portland Kettle Works 7 BBL Brewing System -1052
Certified Used Portland Kettle Works 7 BBL Brewing System – 1052
Manufactured by Portland Kettle Works
- Complete 7 BBL Portland Kettle Works brewhouse
- 1 ea. PKW 7 BBL Vertical Fermenter
- 1 ea. Metalcraft 7 BBL Vertical Fermenter
- 1 ea. PKW 15 BBL Vertical Fermenter
- 1 ea. Practical Fusion 15 BBL Vertical Fermenter
- 1 ea. DME 15 BBL Vertical Fermenter
- 1 ea. PKW 7 BBL Brite Tank
- 1 ea. PKW 15 BBL Brite Tank
- PKW Fermenter temperature control box
- G&D glycol chiller package
- PKW Maltmaster grain mill/span>
- Auxiliary Equipment (additional hoses, clamps, accessories, etc.)
Location: Roseburg, OR
Stock Number: 1052
Page Title: Certified Used Portland Kettle Works 7 BBL Brewing System — 1052
